Concrete Hollow Solid Block Making Machine

Product Image

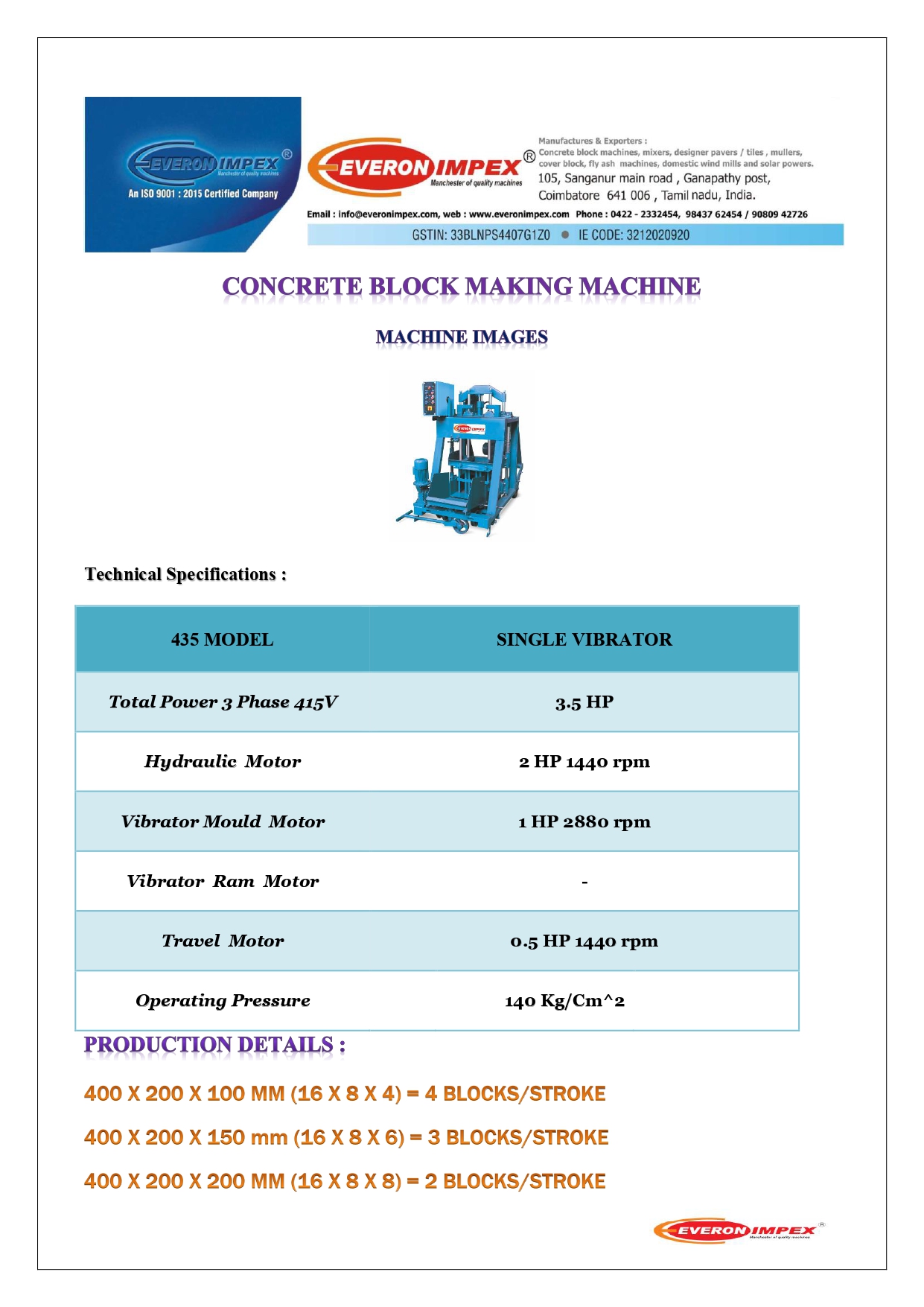

Solid Block Making Machine – 435

Product Image

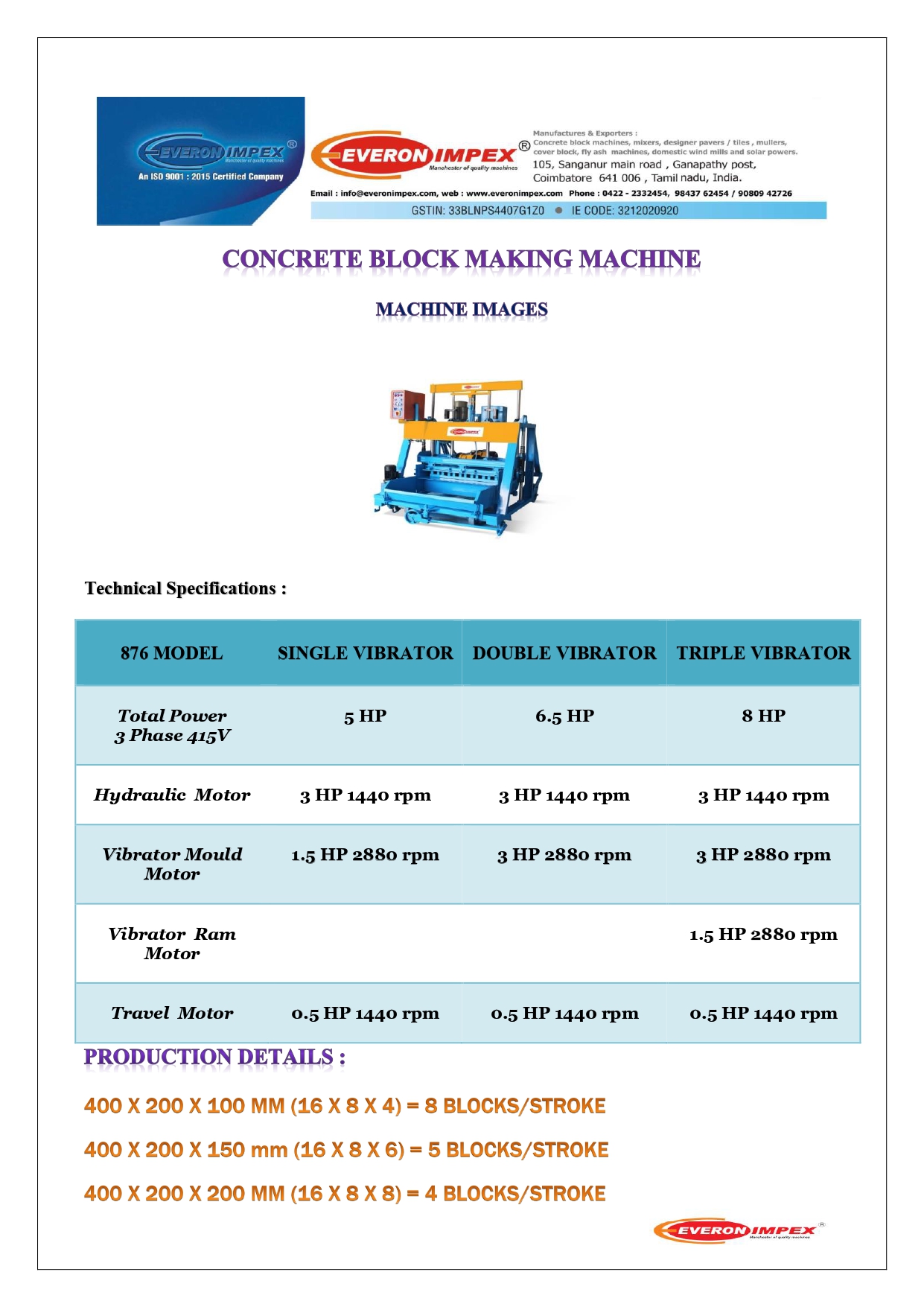

Hollow Block Making Machine - 876 Double Vibrator

Product Image

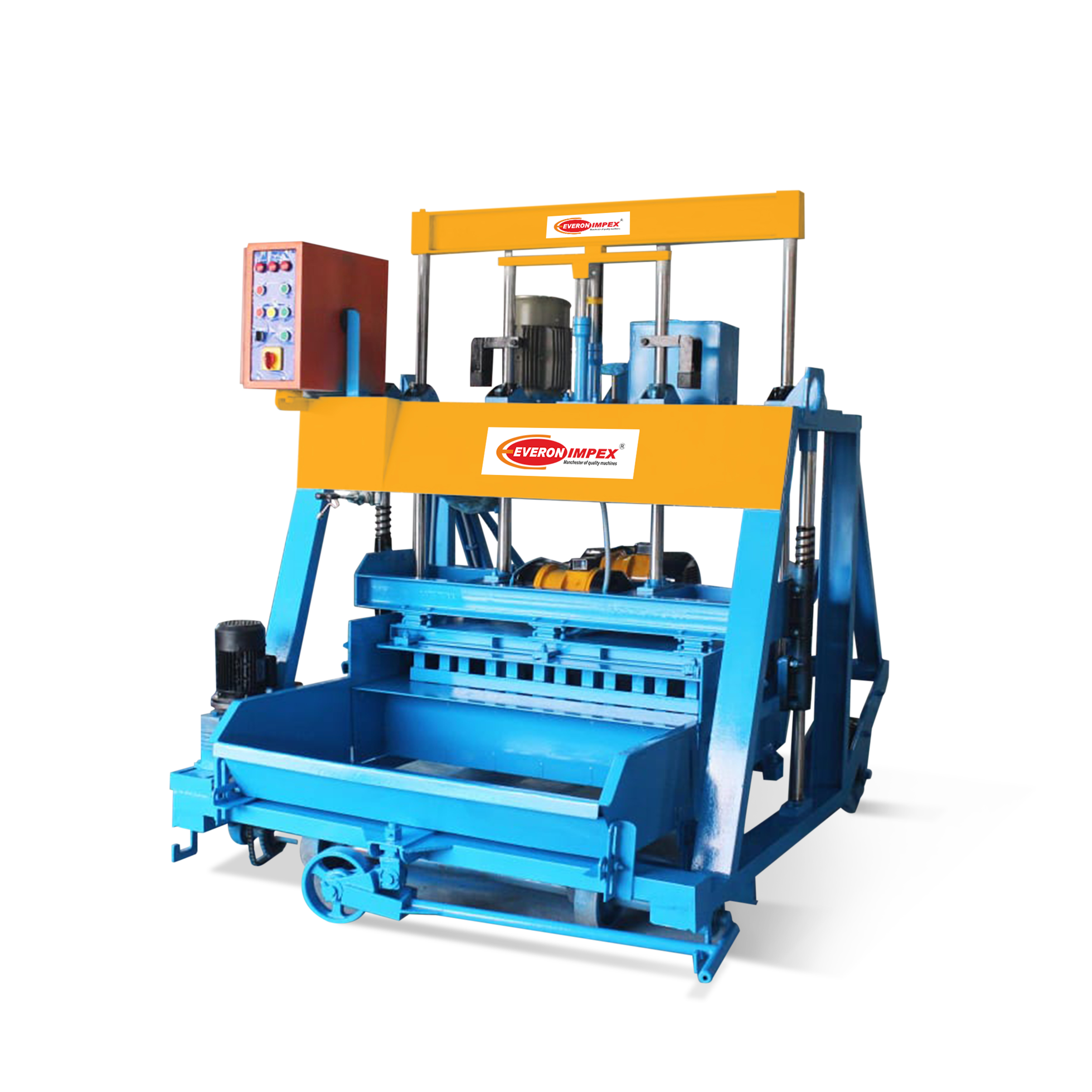

Concrete Brick Making Machine - 876 Triple Vibrator

Product Image

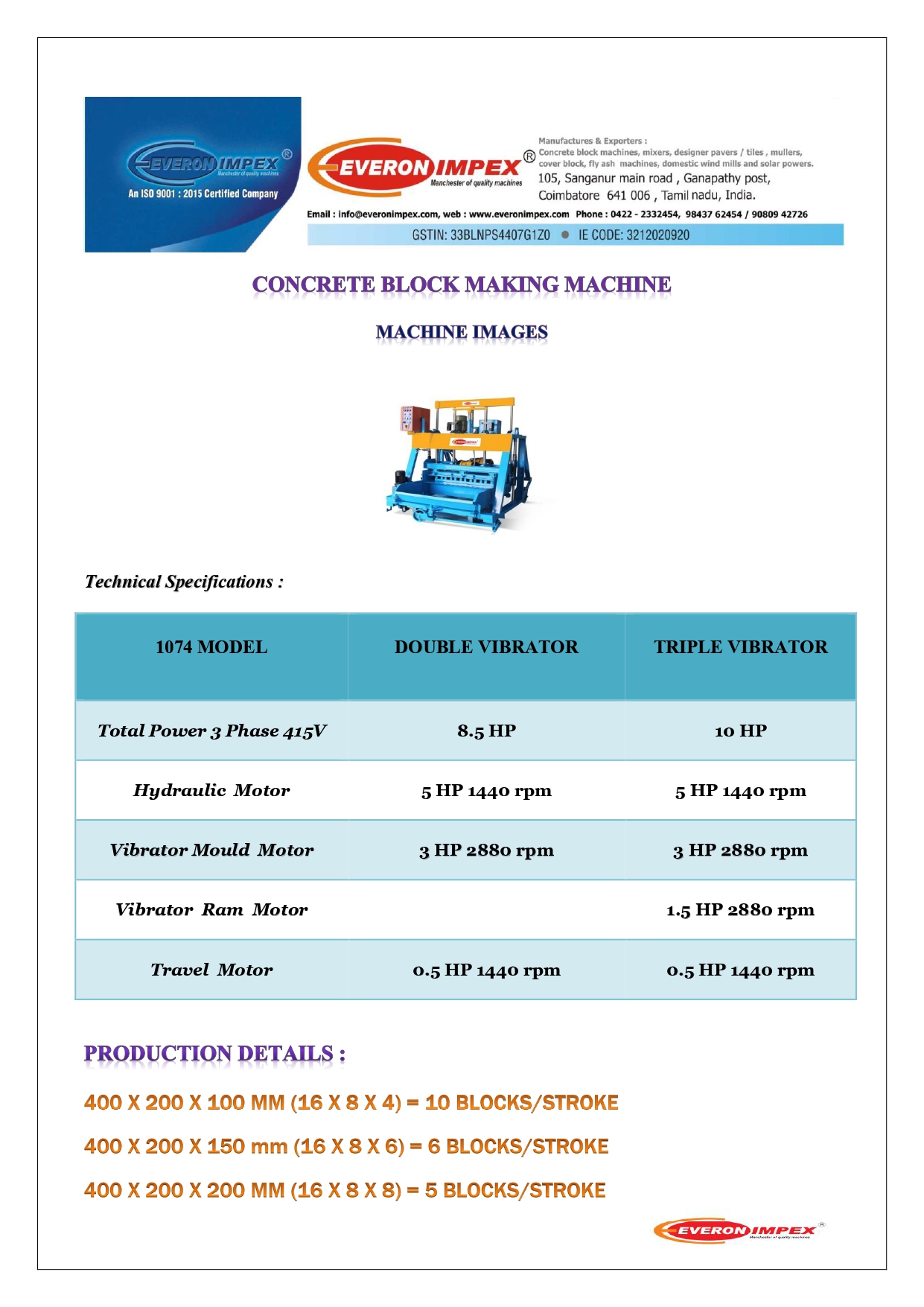

Cement Block Making Machine - 1074 double vibrator

Product Image

Egg Laying Brick Making Machine - 1074 Triple vibrator

Product Image

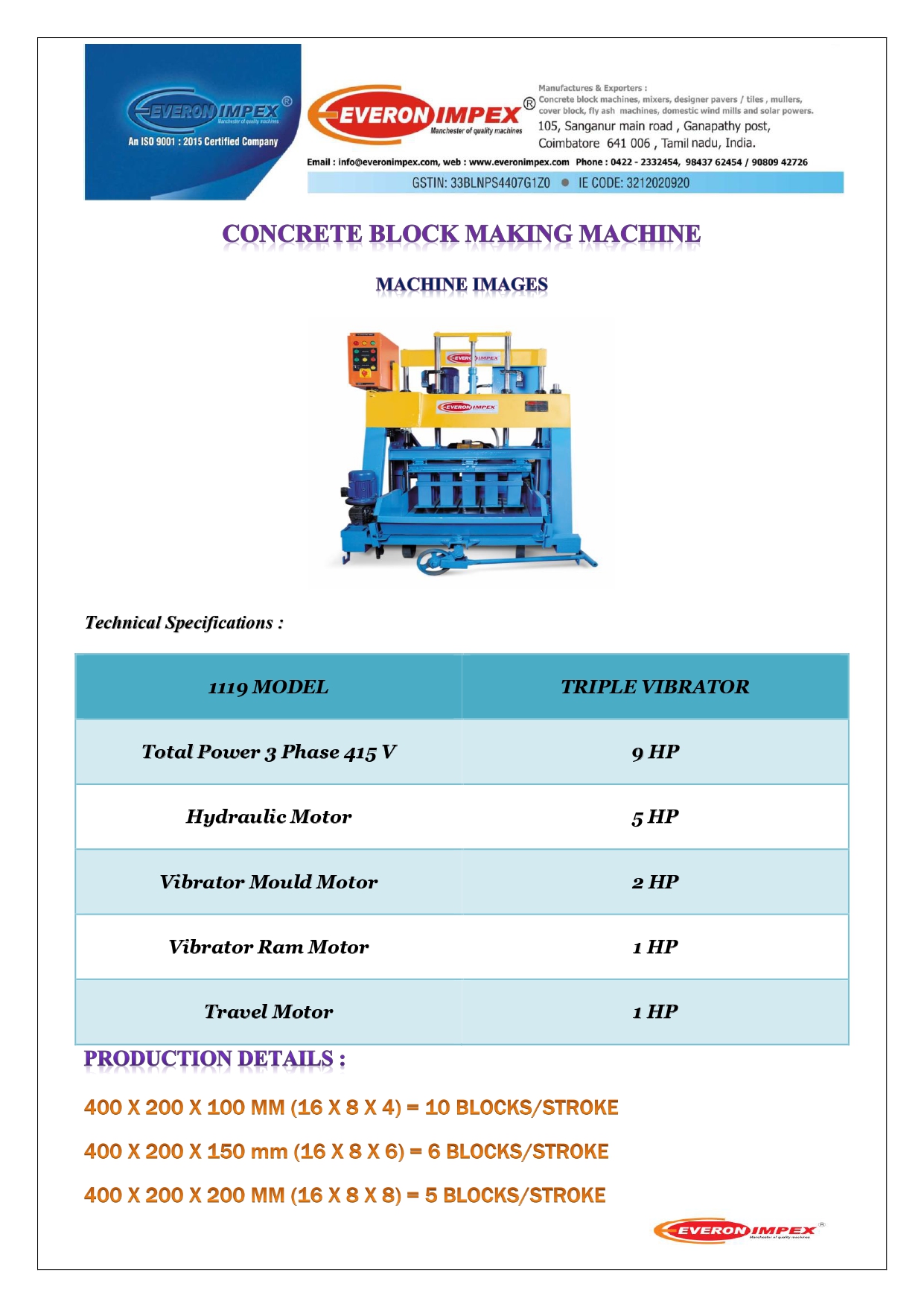

Hydraulic Block Making Machine - 1119 Triple Vibrator

Product Image

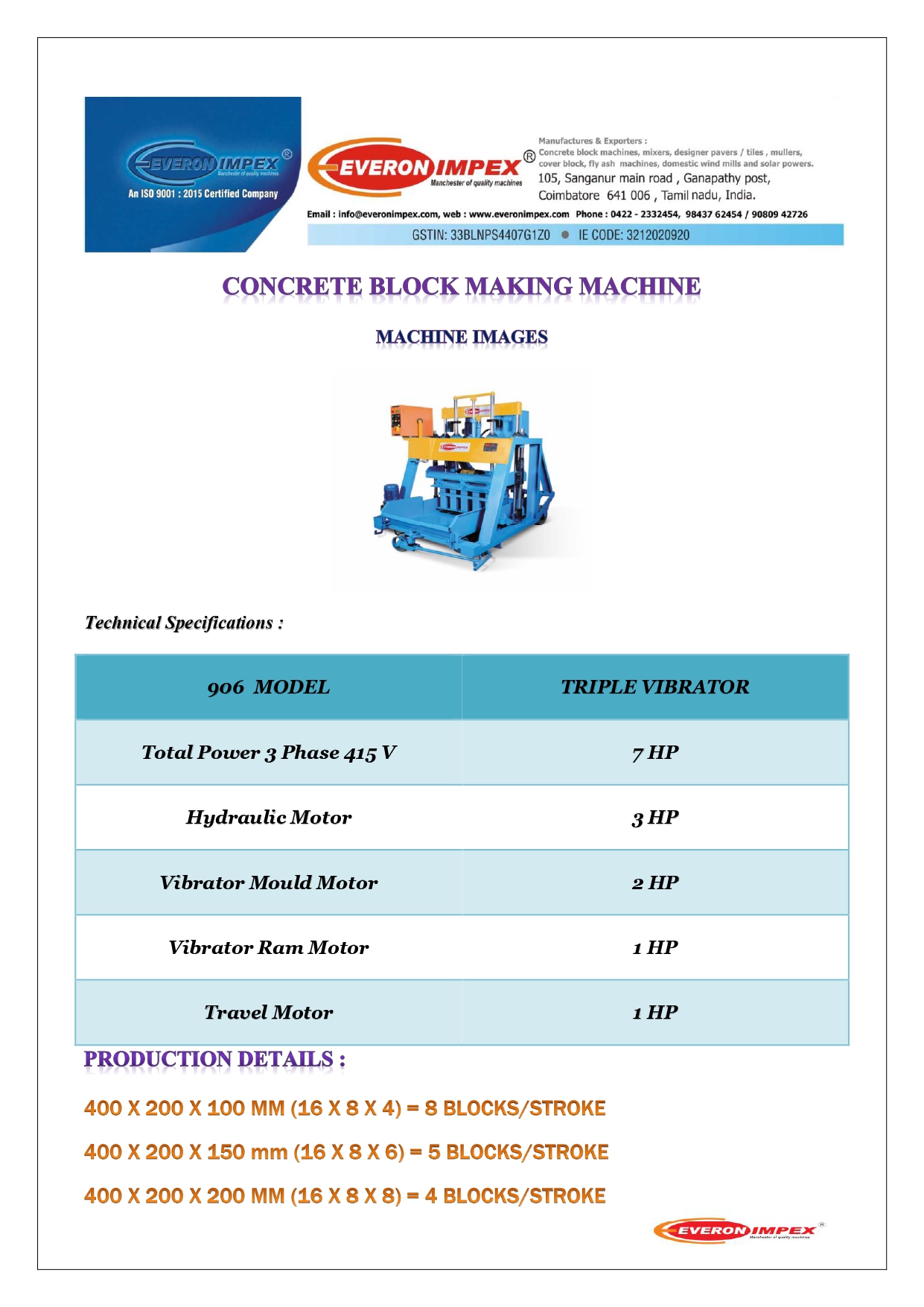

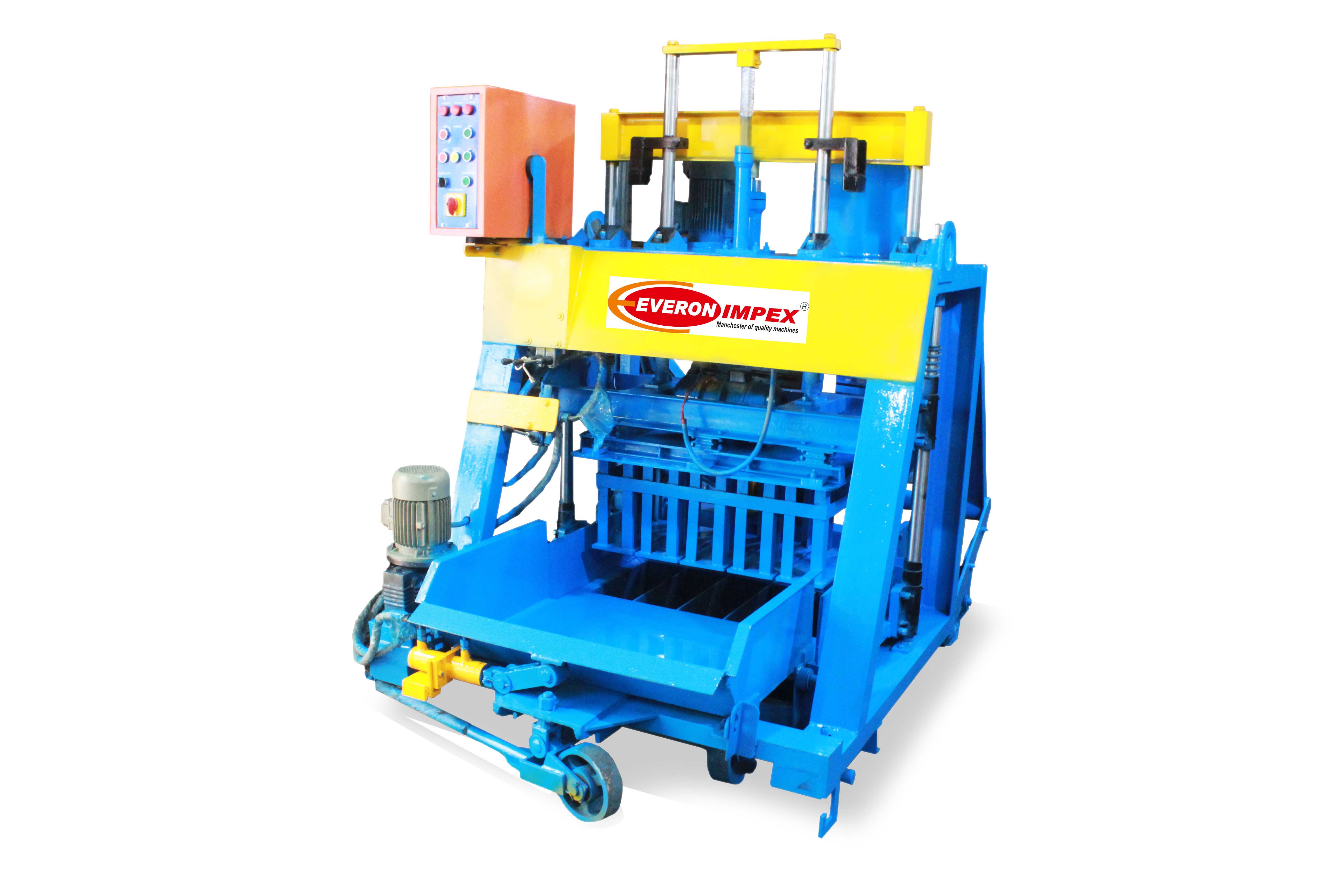

- Semi Automatic Brick Making Machine - 906 Heavy Duty Machine

Product Image

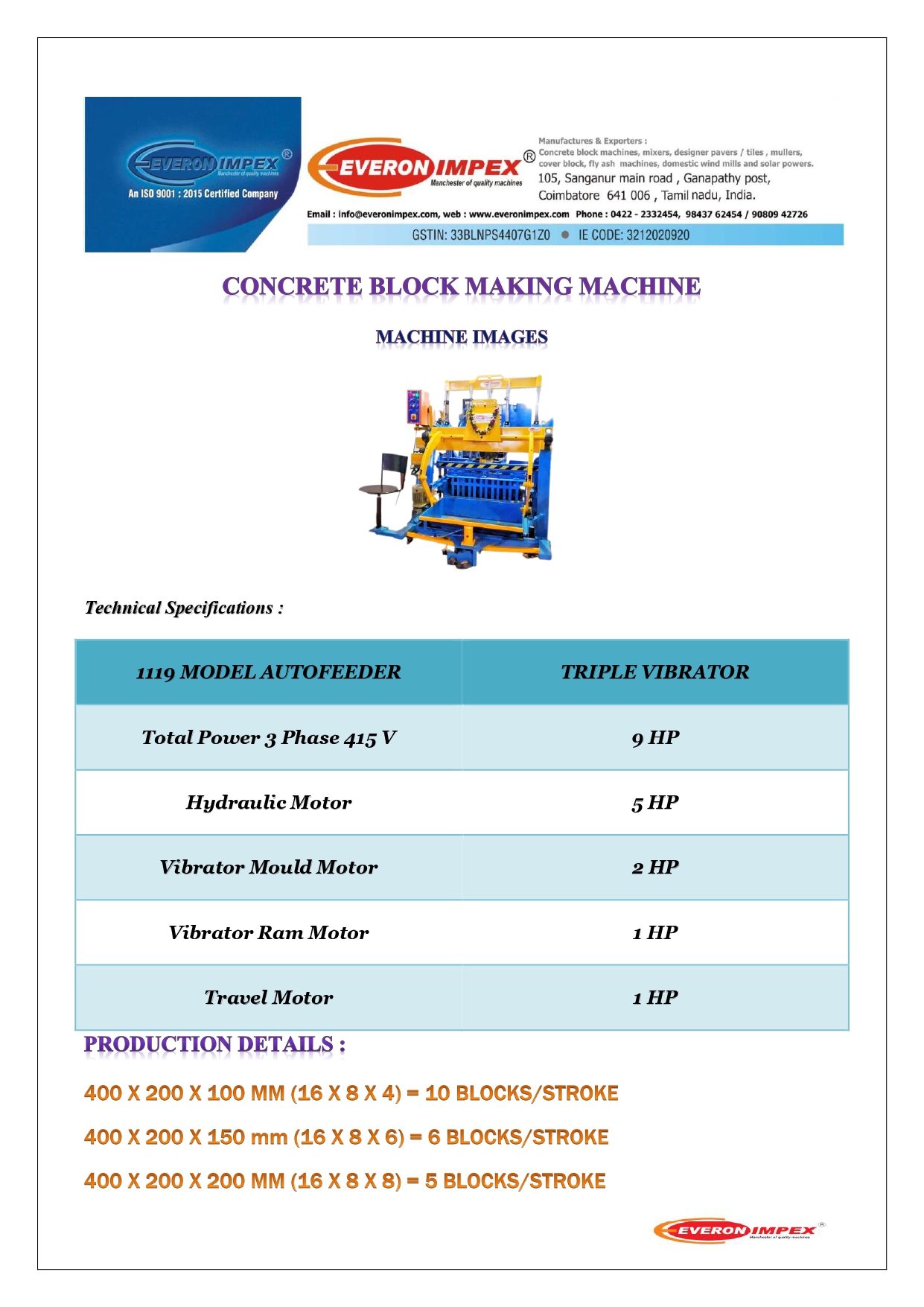

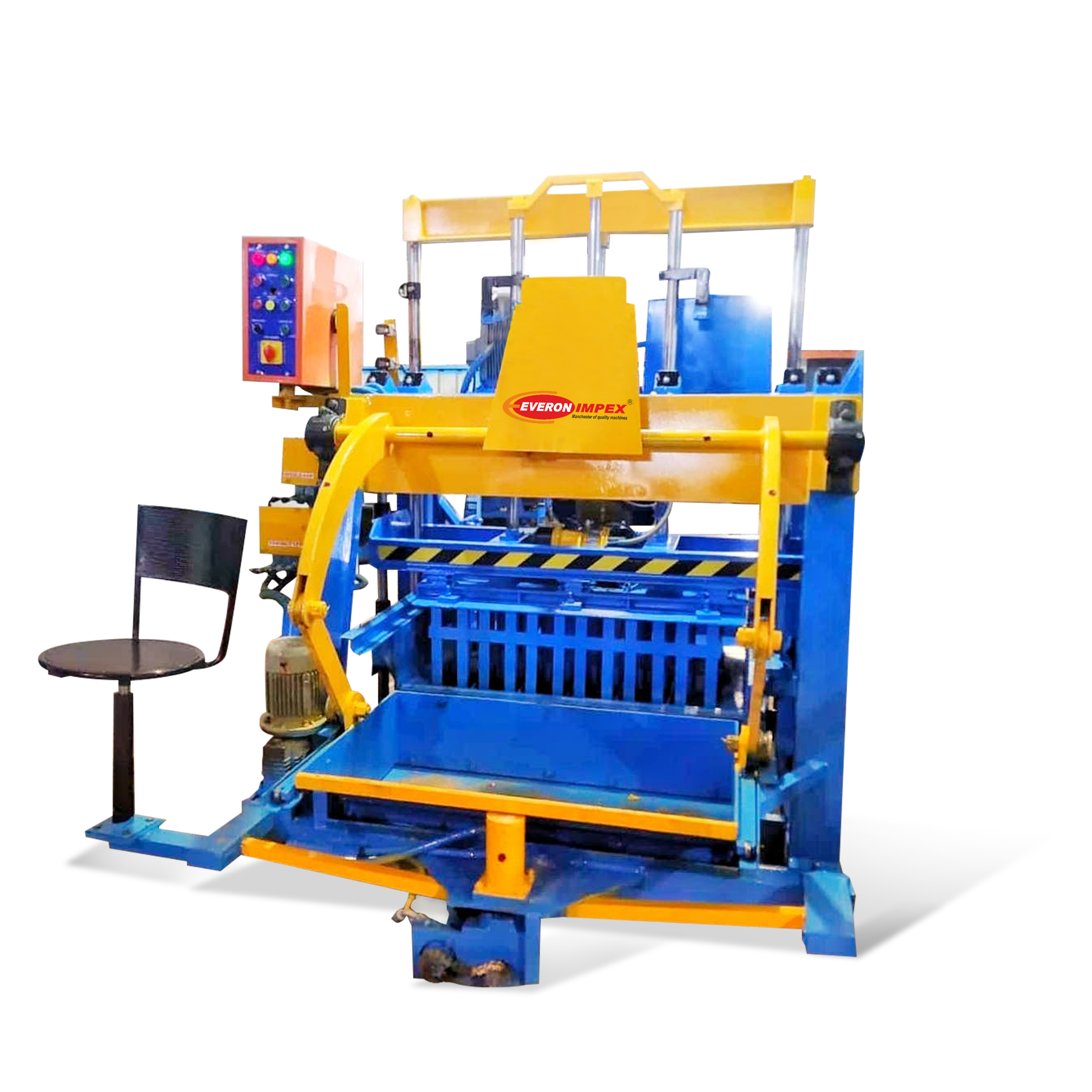

Automatic Hydraulic Concrete Block Making Machine - 1119 Auto Feeder

Product Image

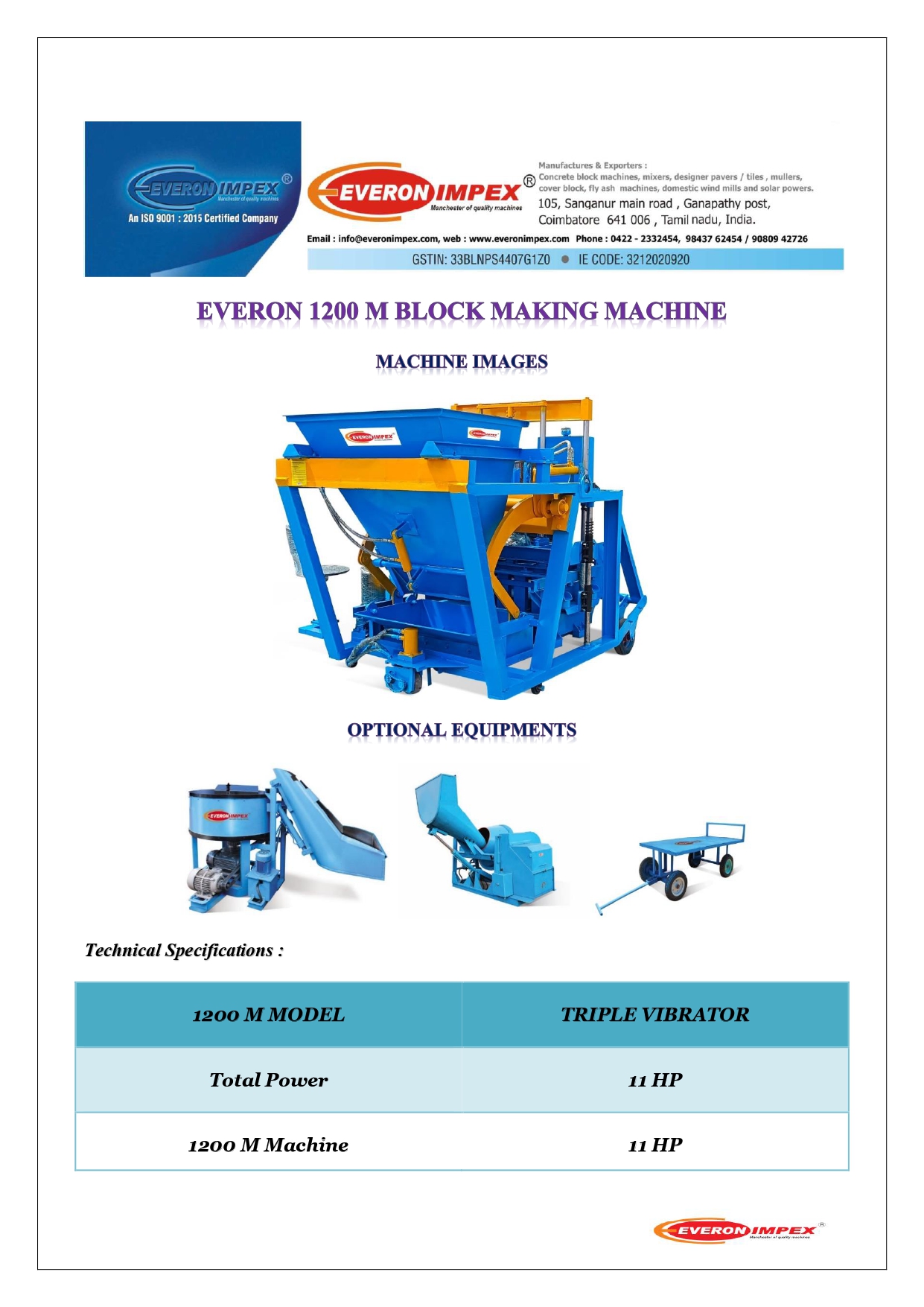

Fully Automatic Hollow Brick Making Machine - 1200 Mass Production

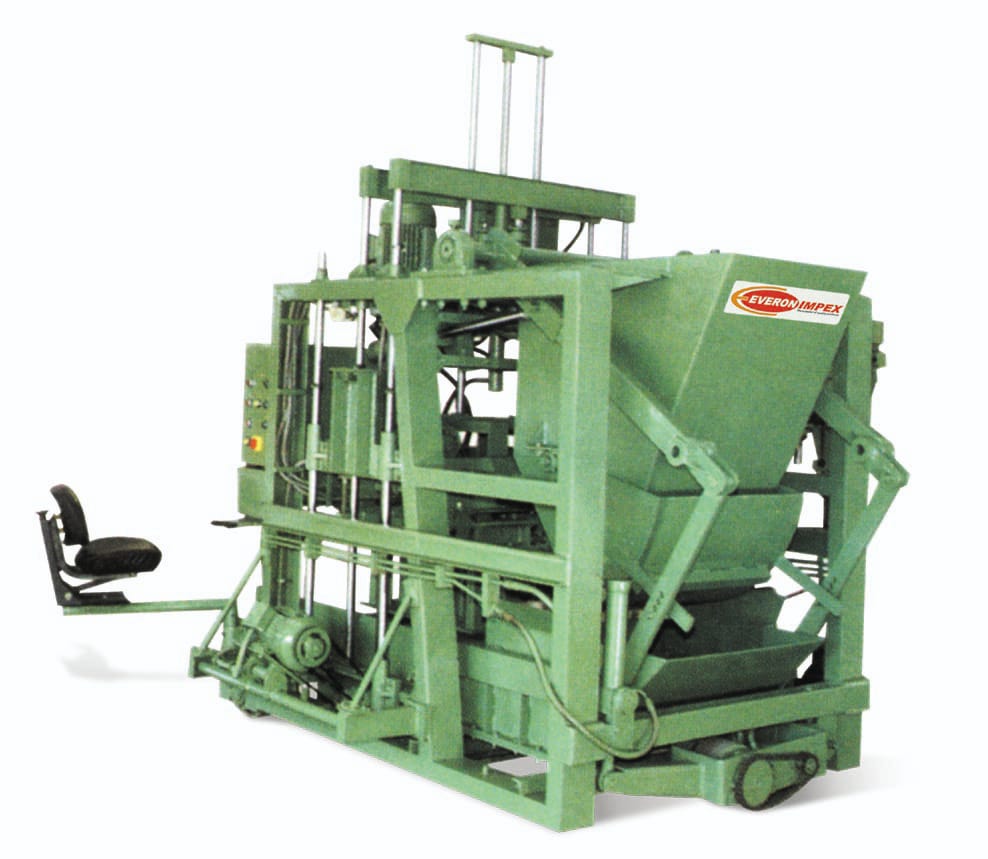

Everon 1752 Four Vibrator

1752 Model	Four Vibrator
Total Power `3 Phase 415 V	25.5 H P
Hydraulic Motor	7.5 H.P 1440 rpm
Vibrator Mould Motor	2 no x 5 H.P 2880 rpm
Vibrator Ram Motor	2 no x 3 H.P 2880 rpm
Travel Motor	2 H.P 1440 rpm
Weight	4250 kg (Approx)
Operating Pressure	140 kg/cm³
Production Capacity 50 – 60 stroke / hour	400 x 200 x 100 mm 16 block / stroke 400 x 200 x 150 mm 10 block / stroke 400 x 200 x 200 mm 08 block / stroke

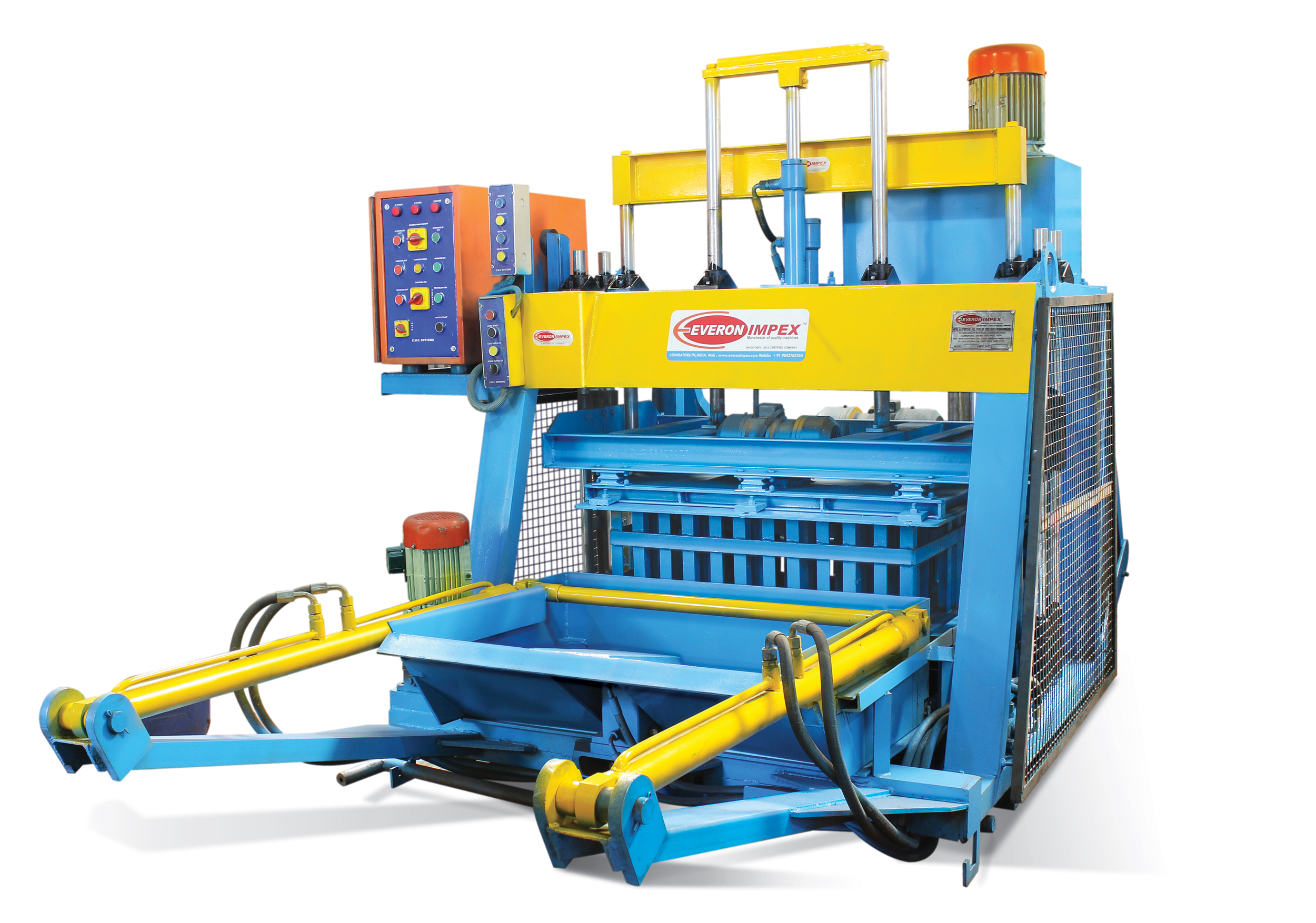

Everon 2238 Auto Feeder

2238 Model	Triple Vibrator
Total Power `3 Phase 415 V	10 H P
Hydraulic Motor	5 H.P 1440 rpm
Vibrator Mould Motor	2 H.P 2880 rpm
Vibrator Ram Motor	1 H.P 2880 rpm
Travel Motor	2 H.P 1440 rpm
Weight	3650 kg (Approx)
Operating Pressure	140 kg/cm³
Production Capacity 50 – 60 stroke / hour	400 x 200 x 100 mm 20 block / stroke 400 x 200 x 150 mm 12 block / stroke 400 x 200 x 200 mm 10 block / stroke

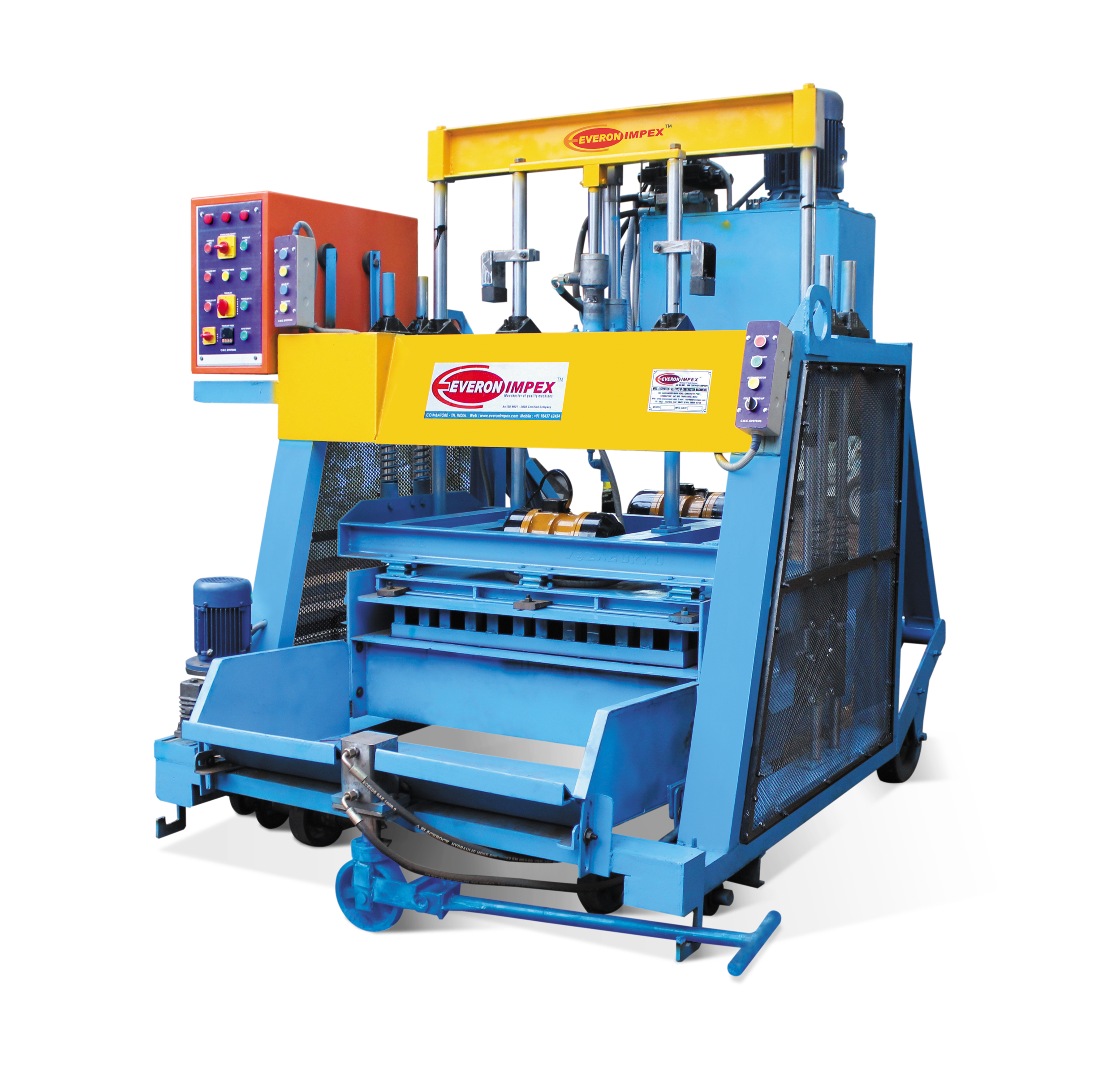

Everon 2238 Triple Vibrator

2238 Model	Triple Vibrator
Total Power `3 Phase 415 V	10 H P
Hydraulic Motor	5 H.P 1440 rpm
Vibrator Mould Motor	2 H.P 2880 rpm
Vibrator Ram Motor	1 H.P 2880 rpm
Travel Motor	2 H.P 1440 rpm
Weight	3650 kg (Approx)
Operating Pressure	140 kg/cm³
Production Capacity 50 – 60 stroke / hour	400 x 200 x 100 mm 20 block / stroke 400 x 200 x 150 mm 12 block / stroke 400 x 200 x 200 mm 10 block / stroke

EVERON SHB 500

Production Capacity	400 x 200 x 100 - 6 Blocks / stroke . (2800 – 3300 Solid Blocks / Shift ) , 400 x 200 x 150 - 4 Blocks / stroke . (1900 – 2300 Solid Blocks / Shift ), 400 x 200 x 200 - 3 Blocks / stroke . (1400– 1800 Solid Blocks / Shift ),
Production Cycle	Solid Blocks (60 Sec / Stroke)
Power	5Hp Hydraulic motor,2 Hp Vibrator motor
Auto feeder	Raw material and Pallet automatic feeding and Auto ejection system
Panel Board	PLC based system
Valve	Hydro control Solenoid valve system (High & Low pressure)
Pan mixer	7.5 hp motor ,Crown type Gear box
Conveyor	Raw material automatic convey from pan mixer. Length - 15 Feet , Width ; 1.8 Feet
Hydraulic pallet truck Capacity	2000 Kgs , Minimum lift height ; 85 mm, Maximum lift height: 200 mm, Fork Length ; 1150 mm, Fork width ; 540 mm, Wheel ; PU wheels

EVERON SHB 650

Production Capacity	400 x 200 x 100 - 6 Blocks / stroke . (8500 – 9000 Solid Blocks / Shift ) , 400 x 200 x 150 - 4 Blocks / stroke . (5500 – 6000 Solid Blocks / Shift ), 400 x 200 x 200 - 3 Blocks / stroke . (1400– 1800 Solid Blocks / Shift ),
Production Cycle	Solid Blocks (20 Sec / Stroke)
Power	10 hp , 1440 rpm
Auto feeder	Raw material and Pallet automatic feeding and Auto ejection system
Panel Board	PLC based system
Valve	Hydro control Solenoid valve system (High & Low pressure)
Pan mixer	7.5 hp motor ,Crown type Gear box
Conveyor	Raw material automatic convey from pan mixer. Length - 15 Feet , Width ; 1.8 Feet
Hydraulic pallet truck Capacity	2000 Kgs , Minimum lift height ; 85 mm, Maximum lift height: 200 mm, Fork Length ; 1150 mm, Fork width ; 540 mm, Wheel ; PU wheels

EVERON SHB 700

Production Capacity	400 x 200 x 100 - 6 Blocks / stroke . (8500 – 9000 Solid Blocks / Shift ) , 400 x 200 x 150 - 4 Blocks / stroke . (5500 – 6000 Solid Blocks / Shift ), 400 x 200 x 200 - 3 Blocks / stroke . (1400– 1800 Solid Blocks / Shift ),
Production Cycle	Solid Blocks (20 Sec / Stroke)
Power	10 hp , 1440 rpm
Auto feeder	Raw material and Pallet automatic feeding and Auto ejection system
Panel Board	PLC based system
Valve	Hydro control Solenoid valve system (High & Low pressure)
Pan mixer	7.5 hp motor ,Crown type Gear box
Conveyor	Raw material automatic convey from pan mixer. Length - 15 Feet , Width ; 1.8 Feet
Hydraulic pallet truck Capacity	2000 Kgs , Minimum lift height ; 85 mm, Maximum lift height: 200 mm, Fork Length ; 1150 mm, Fork width ; 540 mm, Wheel ; PU wheels

EVERON SHB 750

Production Capacity	400 x 200 x 100 - 6 Blocks / stroke . (8500 – 9000 Solid Blocks / Shift ) , 400 x 200 x 150 - 4 Blocks / stroke . (5500 – 6000 Solid Blocks / Shift ), 400 x 200 x 200 - 3 Blocks / stroke . (1400– 1800 Solid Blocks / Shift ),
Production Cycle	Solid Blocks (20 Sec / Stroke), Hollow Blocks (40 Sec/stroke) Paver Blocks (30 Sec / stroke) Approx 8 Nos (Depends on size)
Power	10 hp , 1440 rpm
Auto feeder	Raw material and Pallet automatic feeding and Auto ejection system
Panel Board	PLC based system
Valve	Hydro control Solenoid valve system (High & Low pressure)
Pan mixer	20 hp motor ,V9 Vigneesh Gear box stand type
Conveyor	Raw material automatic convey from pan mixer. Length - 15 Feet , Width ; 1.8 Feet
Hydraulic pallet truck Capacity	2000 Kgs , Minimum lift height ; 85 mm, Maximum lift height: 200 mm, Fork Length ; 1150 mm, Fork width ; 540 mm, Wheel ; PU wheels

Manual stationary machine

Total Power	1.5 Hp
Operations	50- 60 Stroke /Hour
Production Capacity	400 x 200 x 100 MM - 4 Blocks / stroke , 400 x 200 x 150 MM - 2 Blocks / stroke, 400 x 200 x 150 MM - 2 Blocks / stroke

Stationary heavy-duty machine

Total Power	4 Hp
Operations	50- 60 Stroke /Hour
Production Capacity	400 x 200 x 100 MM - 4 Blocks / stroke , 400 x 200 x 150 MM - 3 Blocks / stroke, 400 x 200 x 150 MM - 2 Blocks / stroke
