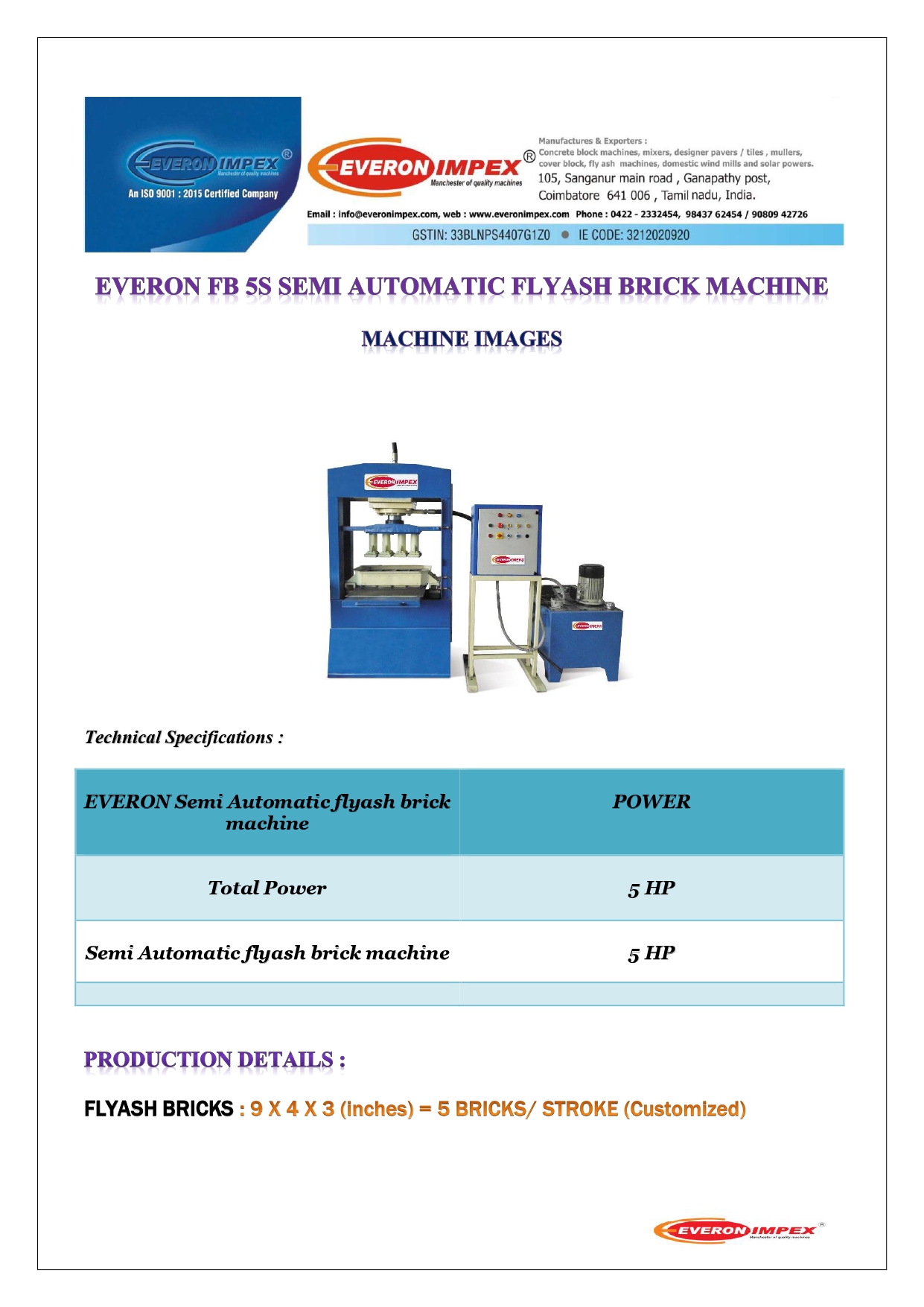

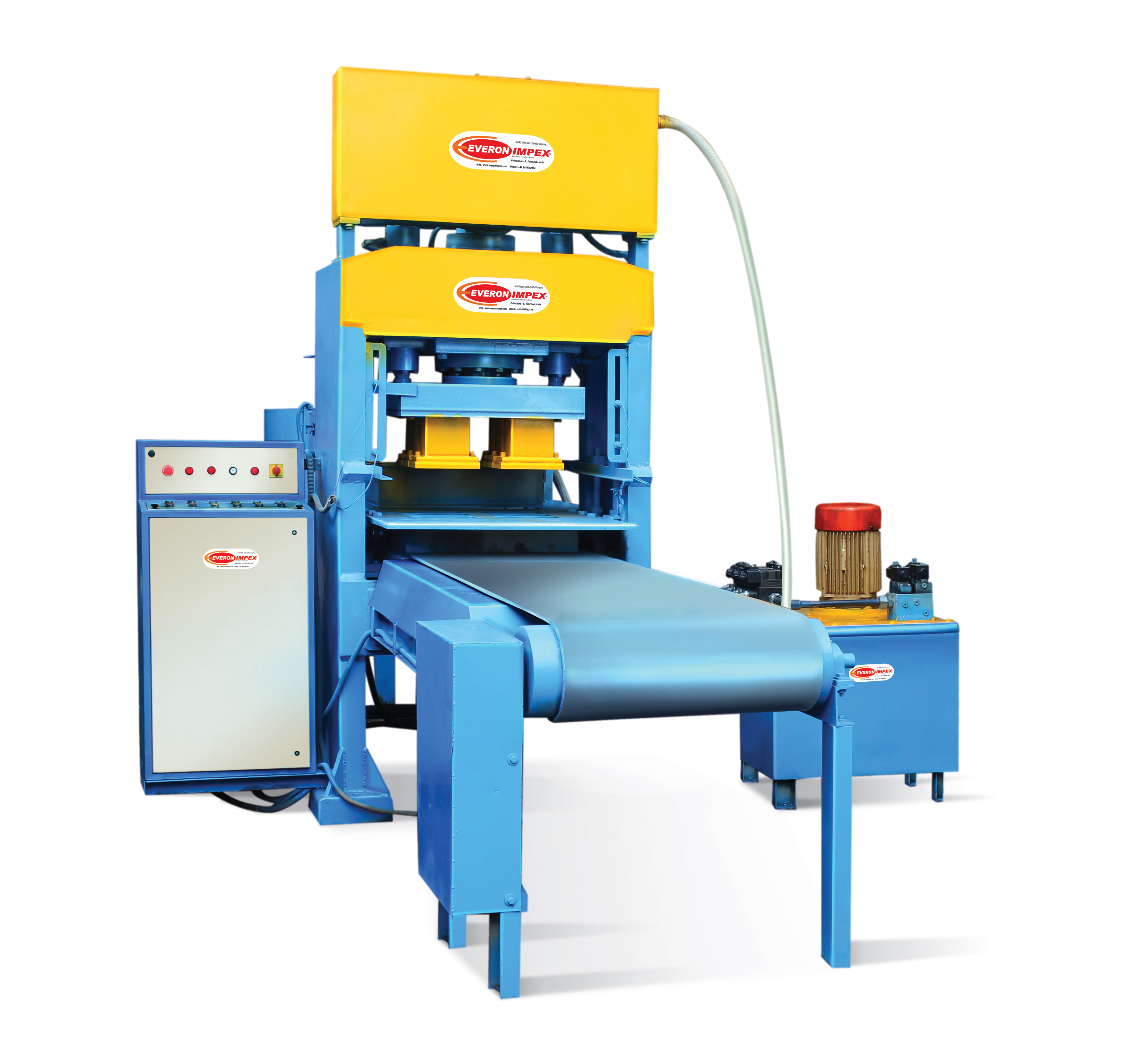

Semi Automatic Fly Ash Brick Making Machine - FB 5S

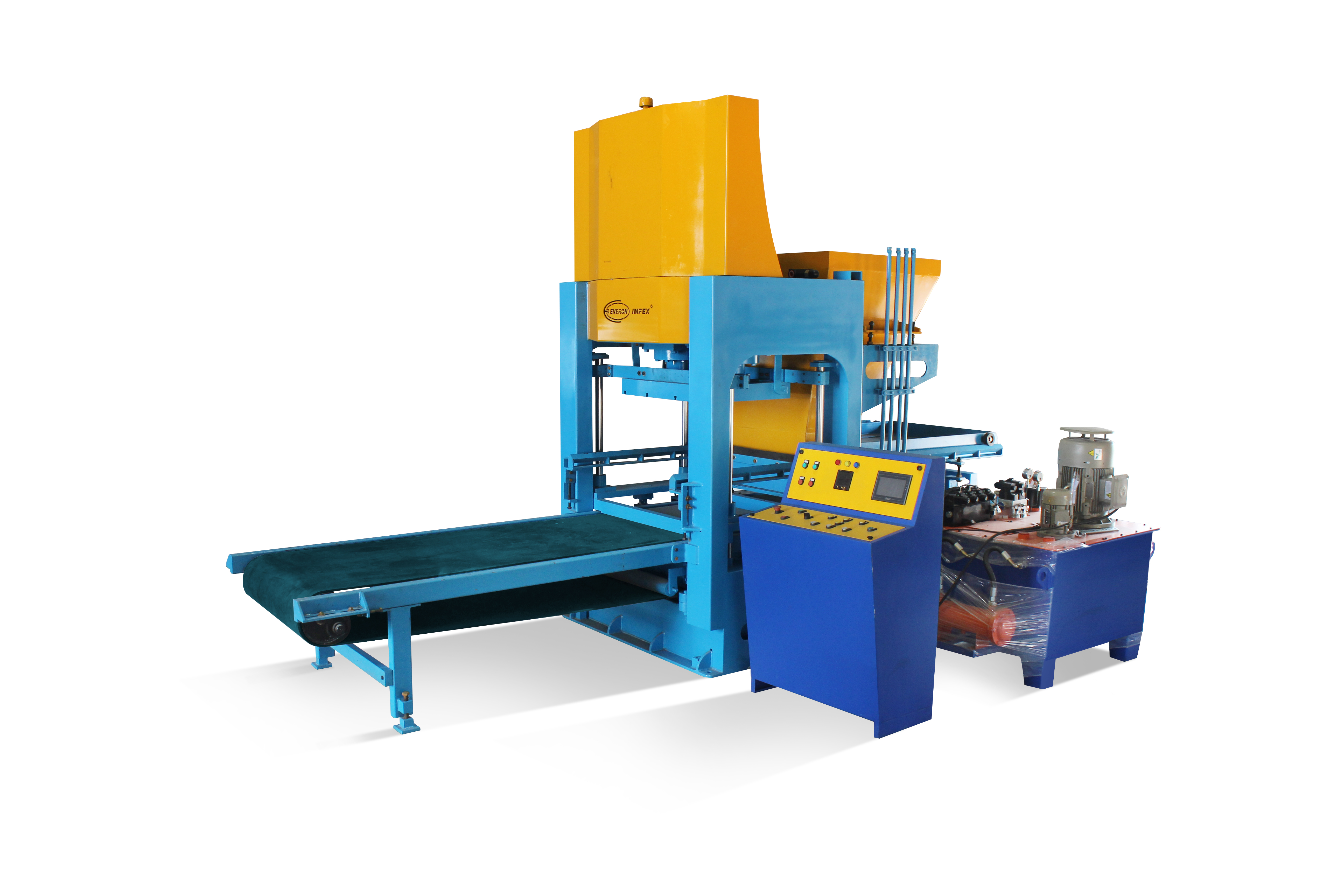

Everon 1200 Mass Production

1200 Model	Triple Vibrator
Total Power `3 Phase 415 V	11 H P
Hydraulic Motor	5 H.P 1440 rpm
Vibrator Mould Motor	3 H.P 2880 rpm
Vibrator Ram Motor	1 H.P 1440 rpm
Travel Motor	2 H.P 1440 rpm
Weight	3350 kg (Approx)
Operating Pressure	140 kg/cm³
Production Capacity 50 – 60 stroke / hour	400 x 200 x 100 mm 09 block / stroke 400 x 200 x 150 mm 06 block / stroke 400 x 200 x 200 mm 05 block / stroke
